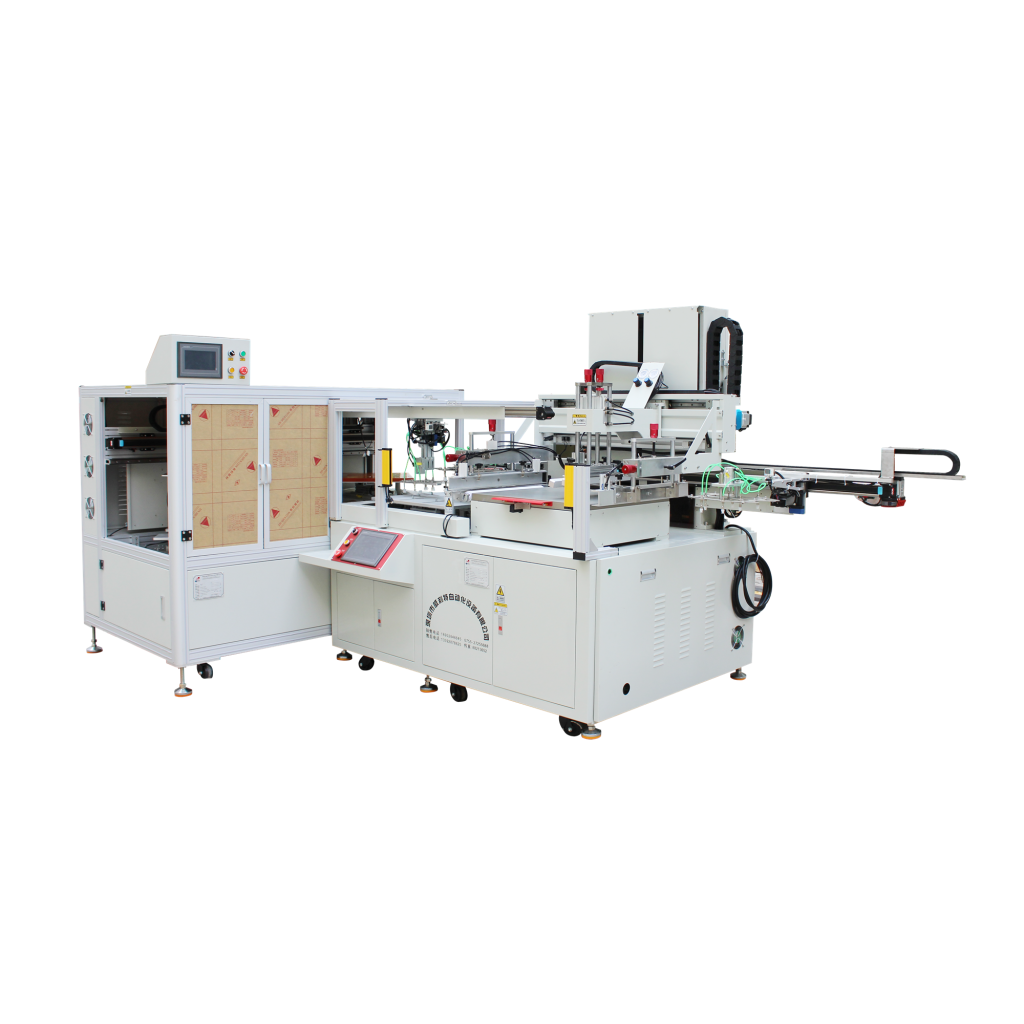

Automatic PET PC Film Tearing Peeling Screen Printer
Machine Description:
1,Automatic alignment printing machine with film tearing Divided into automatic tear film section , loading section, unloading section, printing section along with a shuttle table that moves from right to left(optional for printing table to move from left to right). Designed for manual loading /unloading of substrate; once the camera captures the target image the stage auto offsets and subsequently transports to printing section for printing.
Screen frame up/down movement :driven by servo motor and hall screw with clearance tolerance controlled with 50um.
2,The Automatic alignment printing machine with film tearing machine is the addition of an automatic film tearer to the conventional CCD printing machine. It is used for precision materials where the protective film of the sheet needs to be removed before printing.
The whole process includes: Feeding on the loading platform. Tearing robot feeds and tears the film.
Feeding robot feeds the material (delivers the torn material to the initial positioning platform). The material passes through the guides for initial positioning. Loading of the screen printing machine by the loading robot. CCD screen printing machine alignment printing. Screen printer pick-up robot picks up the material.
The Automatic alignment printing machine with film tearing is suitable for printing on sheet materials such as: membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc.High alignment accuracy, fast printing speed and one person can operate the entire production line.
Related
Certification

certificate
After-sales Services
1,Lifelong2,Spare parts
3,Video technical and online supports
4, Field maintenance and repair service
5,Engineers are available to service machinery overseas.
Related
Machine will be packed in strict safely before transportation. We ensure that no damage occurs in the course of transportation within our capabilities.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transportation. You can choose to transport by sea or by China- Europe Railway Express. AS for the terms of trade., we usually adopt EXW. FOB or CIF

packaging
Related
Q: Are you a factory of a trading company?A: We are a company integrating industry and trade
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my products?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union Paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
